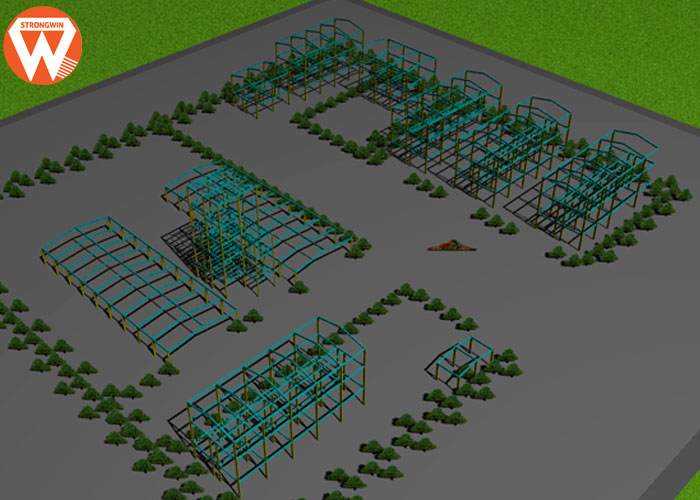

Offer Steel Structure 20T/H Livestock Cattle Sheep Feed Making
Machine
Strongwin machinery supply turnkey projects animal feed plant for
Customers all over the world !
The pellets can apply to Poultry chicken feed, livestock cattle pig
feed.(According Customers need, the plan will different)
Brief introduction of Livestock Cattle Sheep Feed Making Machine
Complete animal feed pellet making machine including feed crusher
machine, feed mixer, feed pellet machine, cooling machine, packing
system. it can make all kinds of animal feed pellet. usually for
poultry feed, cattle,cow,sheep. etc.
Water-drop hammer crusher machine
Fine crushing machine, stable performance, widely used in large and
medium-sized feed, food processing enterprises, raw material
crushing.
Double shaft paddle mixer
Fast mixing speed, short mixing period, 30-120 seconds / batch;
high mixing uniformity, CV ≤ 5%, and no segregation; the mixing
process of the machine is mild, the loading range is variable; the
full-bottom electric opening and unloading Material, fast
discharge, low material residual rate
Ring die feed pellet machine
Imported high-quality bearings and oil seals are used to ensure
efficient, stable and low noise operation. The feeder adopts a
variable frequency speed regulating motor to ensure the quality of
the pellet discharge.
Counter-flow cooler machine
On the Principle of the advanced counter flow cooling, SKLN series
counter flow cooler is equipped with a reciprocating grate type
discharging device, which is characterized by its smooth material
flowing and uniform discharging.
Screener machine
Low breakdown, less maintenance, simple operation, the gearbox
adopts non-gear transmission way, dispense with oil lubrication,
avoid oil pollution with oil leakage
It changes the tail sliding support into elastic support, avoid
deposited material avoid cross contamination
Technical Parameters of Cattle Sheep Feed Making Machine
| 20 T/H Animal Feed Pellet Production Line |
| No. | Product name | Model | Qty | Power(kw) |
| 1. material receiving section |
| 104 | Bucket elevator | TDTG48/28 | 2 | 5.5 |
| 105 | granule material clean sieve | SCY80 | 1 | 0.75 |
| 106 | permanent magnetic | TXCT25 | 1 | |
| 111 | rotary distributor | TFPX.8 | 1 | 0.55 |
| 2. material grinding section |
| 205 | Impeller feeder | SYLW3 | 1 | 1.50 |
| 206 | Tear-circle hammer mill | SDH-ZW50C | 1 | 132 |
| 209 | seal screw conveyor | SWLL25 | 2 | 6.00 |
| 210 | Impeller feeder | SYLW3 | 1 | 1.5 |
| 211 | Tear-circle hammer mill | SDH-ZW80B | 1 | 90 |
| 212 | Fan | 4-72-N04.5A | 1 | 11 |
| 213 | pulse dust collector | TBLFa.42 | 1 | |
| 3. batching and mixing section |
| 311 | small material feeding | | 1 | |
| 312 | pneumatic valve | TZMQ32*32 | 1 | |
| 313 316 | Double shaft high efficient mixer
Double shaft high efficient mixer | SSHJ.2 SSHJ.4 | 1 1 | 18.5 30 |
| 317 | Leveler | RP | 1 | |
| 318 | Vibration hammer | | 1 | |
| 319 | scrapper conveyor | TGSU25 | 1 | 3.00 |
| 322 | powder material clean sieve | SCQZ80 | 1 | 11 |
| 4. pelleting section |
| 404 | vibration pneumatic hammer | | 4 | |
| 407 | Pellet machine | SZLH420 | 2 | 220.00 |
| 409 | counter-current cooler | SKLN6 | 2 | 3.0 |
| 412 | Fan | 4-72No6C | 2 | 30 |
| 413 | discharger | SKL1000 | 2 | |
| 415 | Bucket elevator | TDTG40.28 | 2 | 8 |
| 416 | classic sieve | SFJH125 | 2 | 6 |
| 5. packing section |
| 507 | automatic packing scale | SDBY-P | 2 | |
| 508 | seal conveyor machine | TFKB40 | 2 | 6 |
| 510 | pulse dust collector | TBLFa.24 | 1 | |
| 511 | seal machinery | | 1 | 0.75 |
| 512 | Fan | 4-72-N04.5A | 1 | 7.50 |
| 513 | pulse dust collector | TBLFa.30 | 1 | |
| 6.auxiliary system |
| 601 | Air compressor | | 1 | 22.00 |
| 602 | storage air tank | | 1 | |
| 603 | Dryer | | 1 | |
| 604 | liquid adding machine | SYTV63 | 1 | 3.00 |
| 606 | Steam boiler system | 2T | 1 | |
